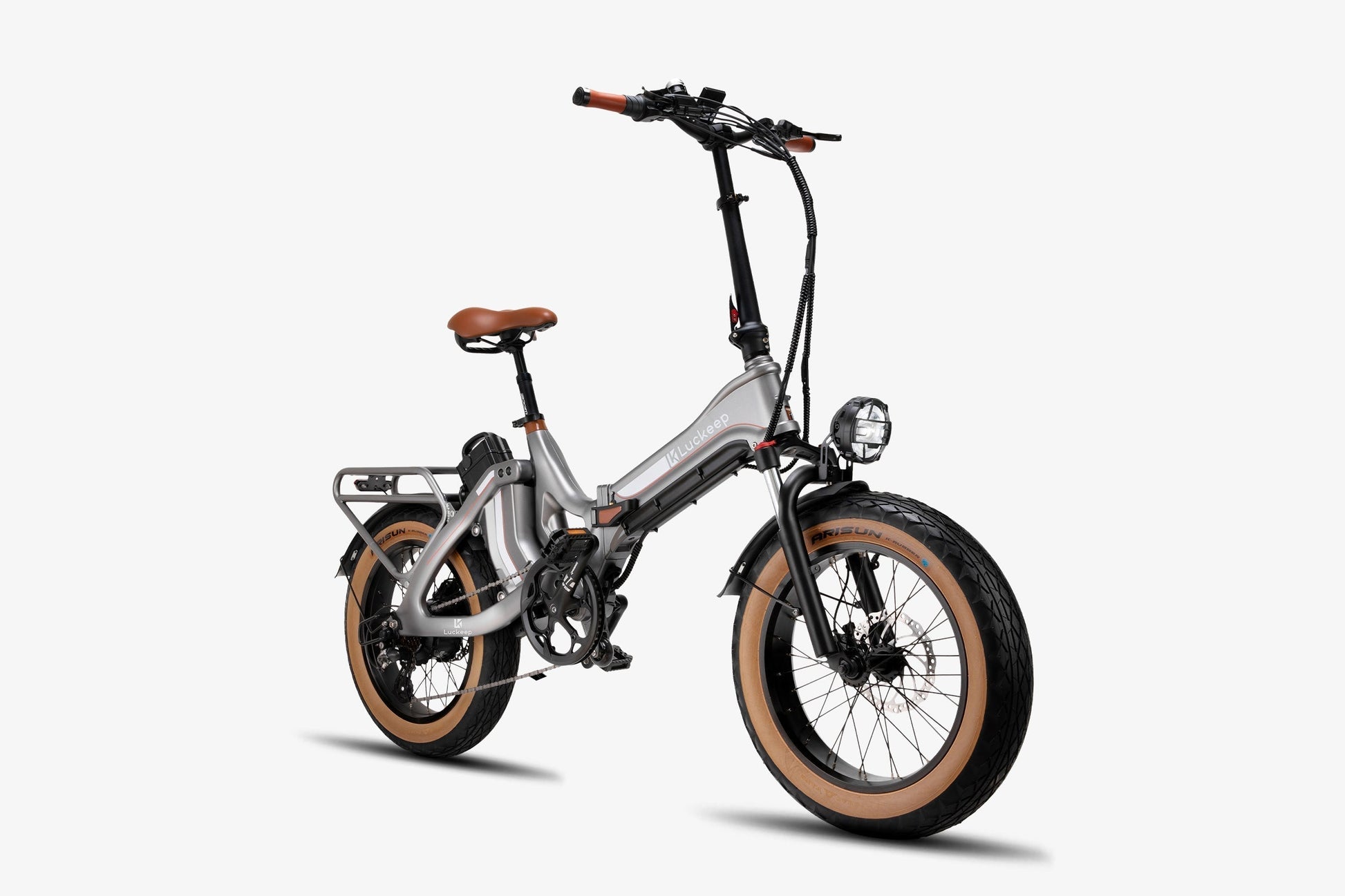

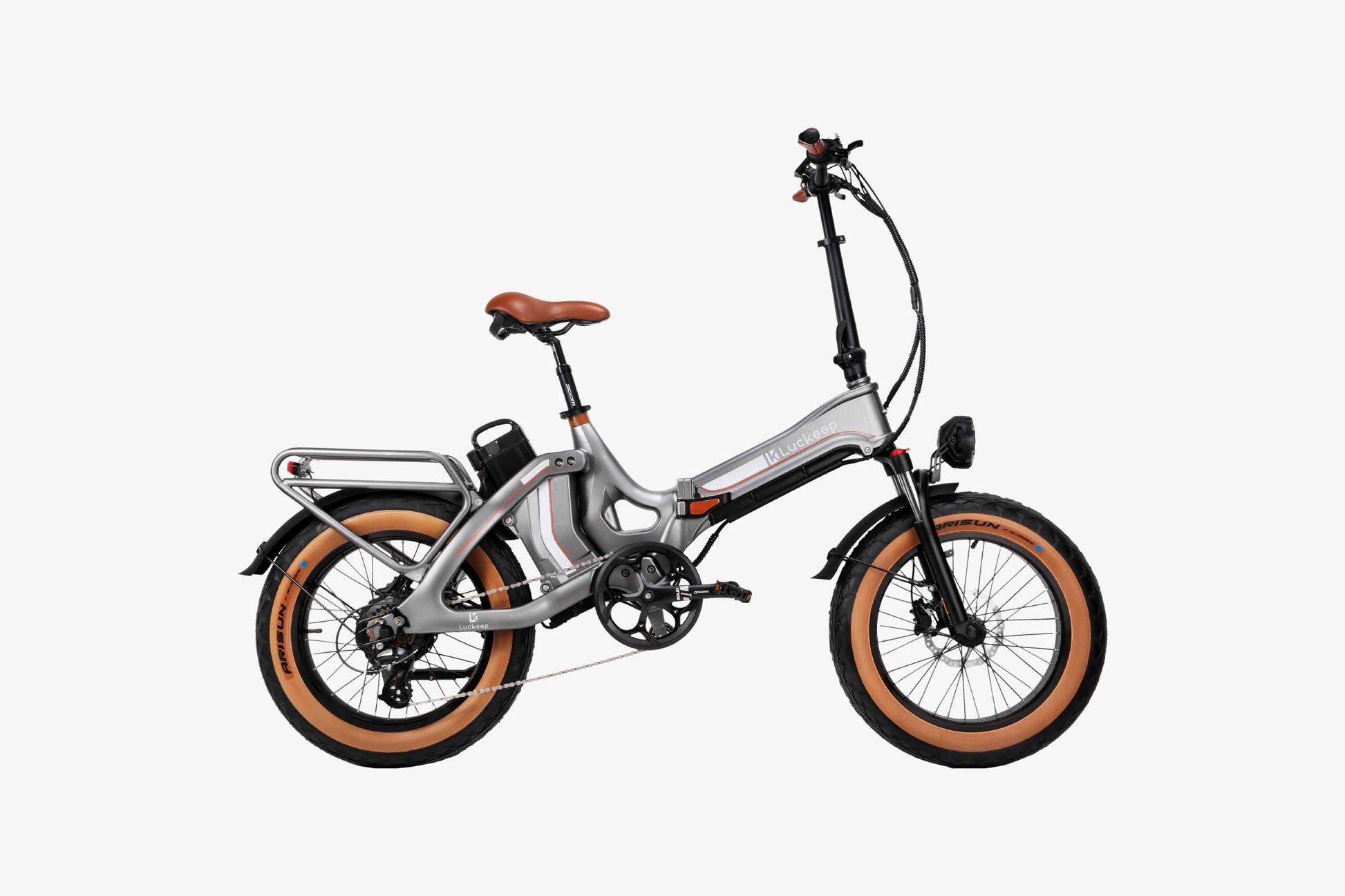

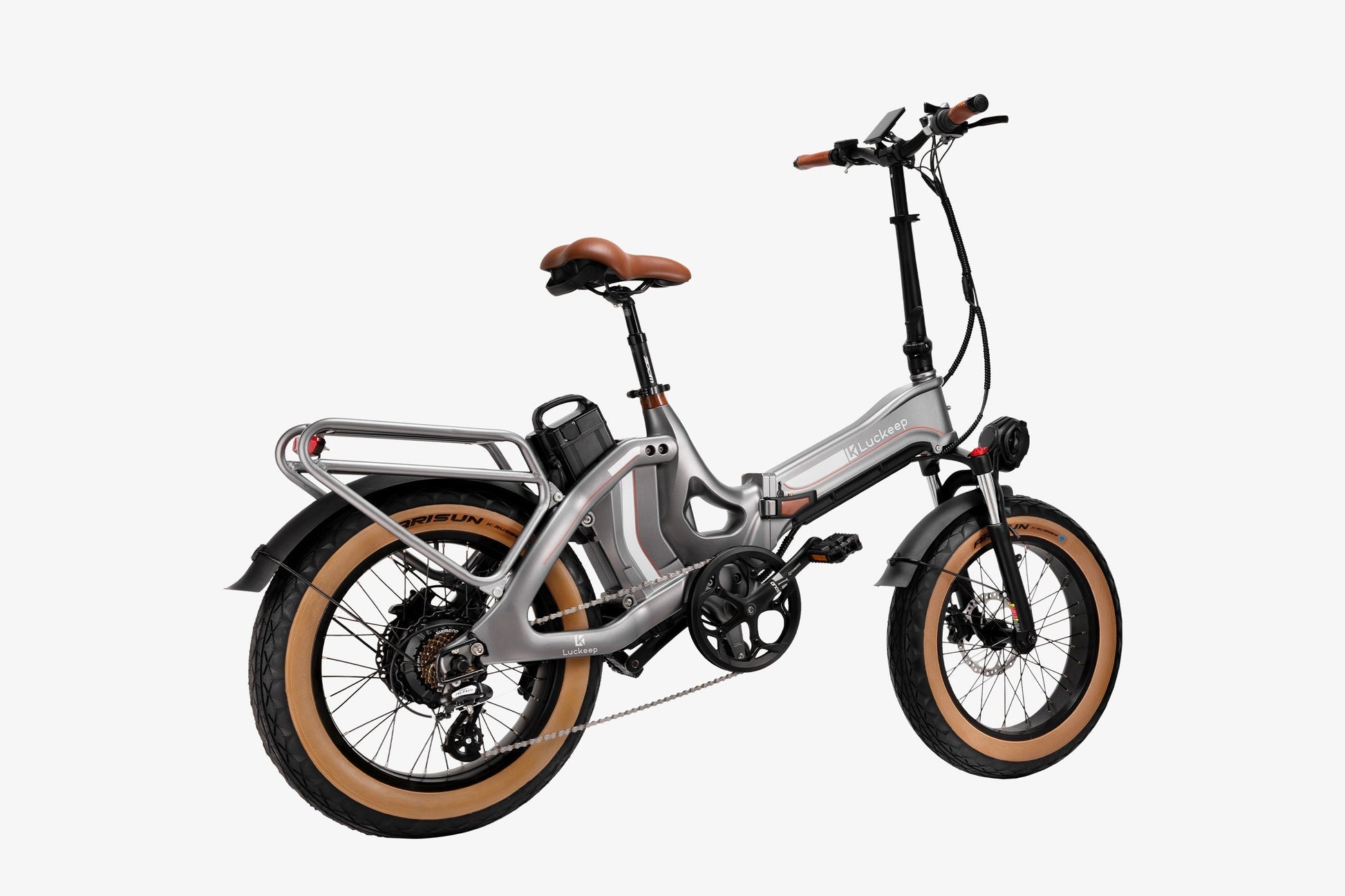

Luckeep X1 Pro Folding Long Range Ebike

Luckeep X1 Pro Folding Long Range Ebike

GENERAL INFO

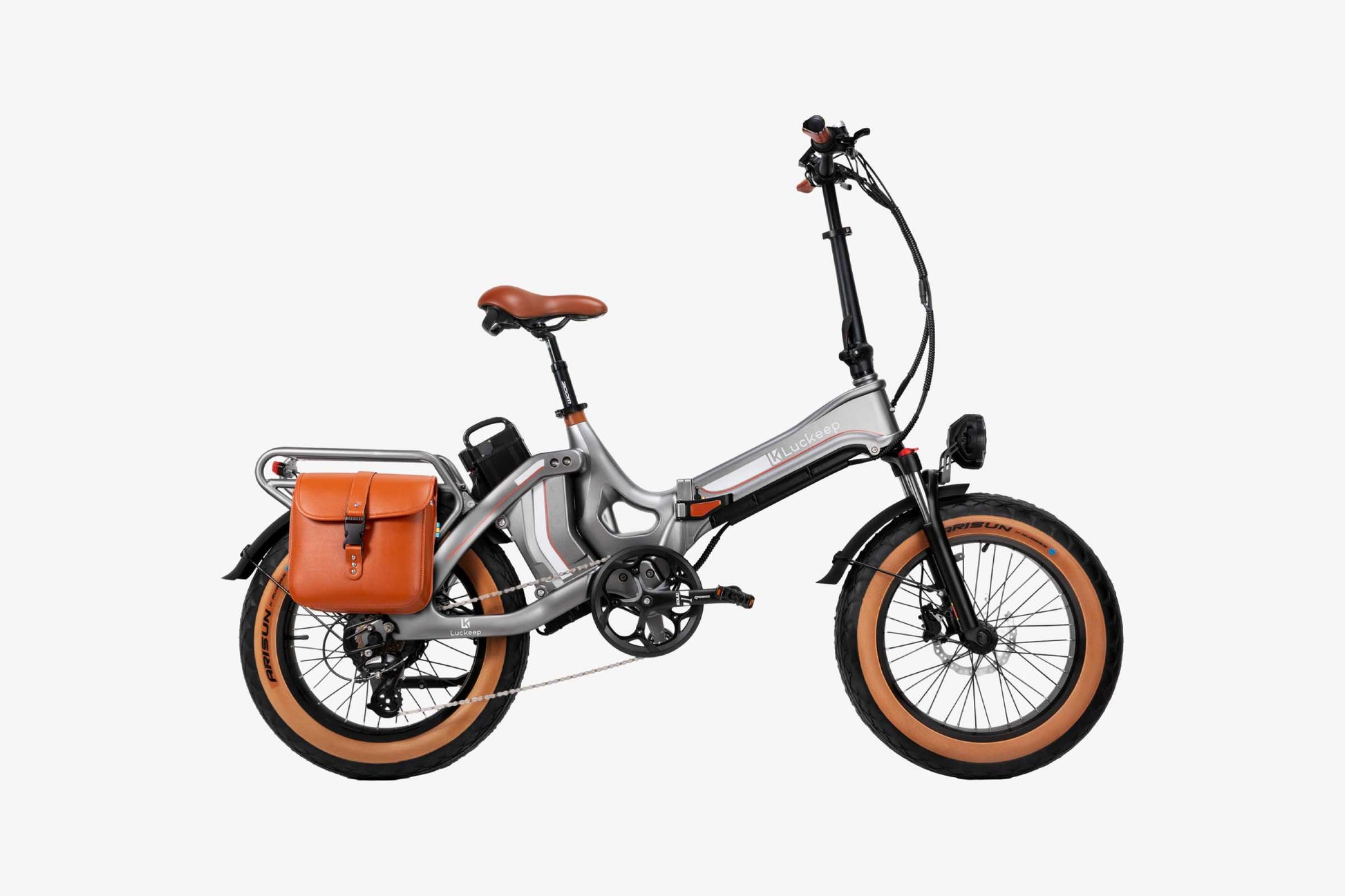

MODEL: Luckeep X1 Pro Long-Range Folding All Terrain Ebike

IDEAL USE: Commuting

RANGE: 100 miles on throttle mode, 120 miles on pas mode

SPEED: 28 MPH

WEIGHT: 81 lbs

TOTAL WEIGHT LIMIT: 440 lbs

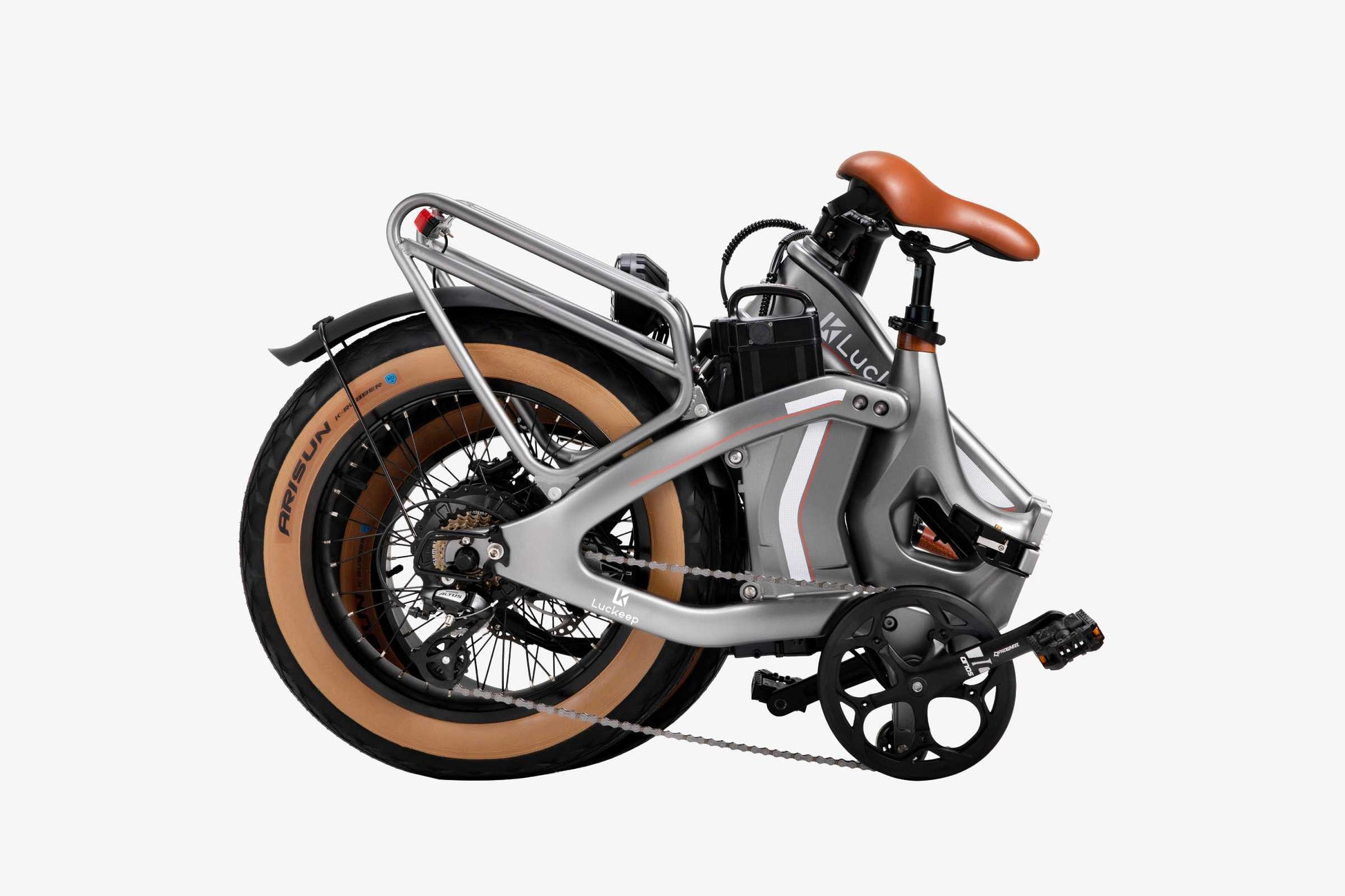

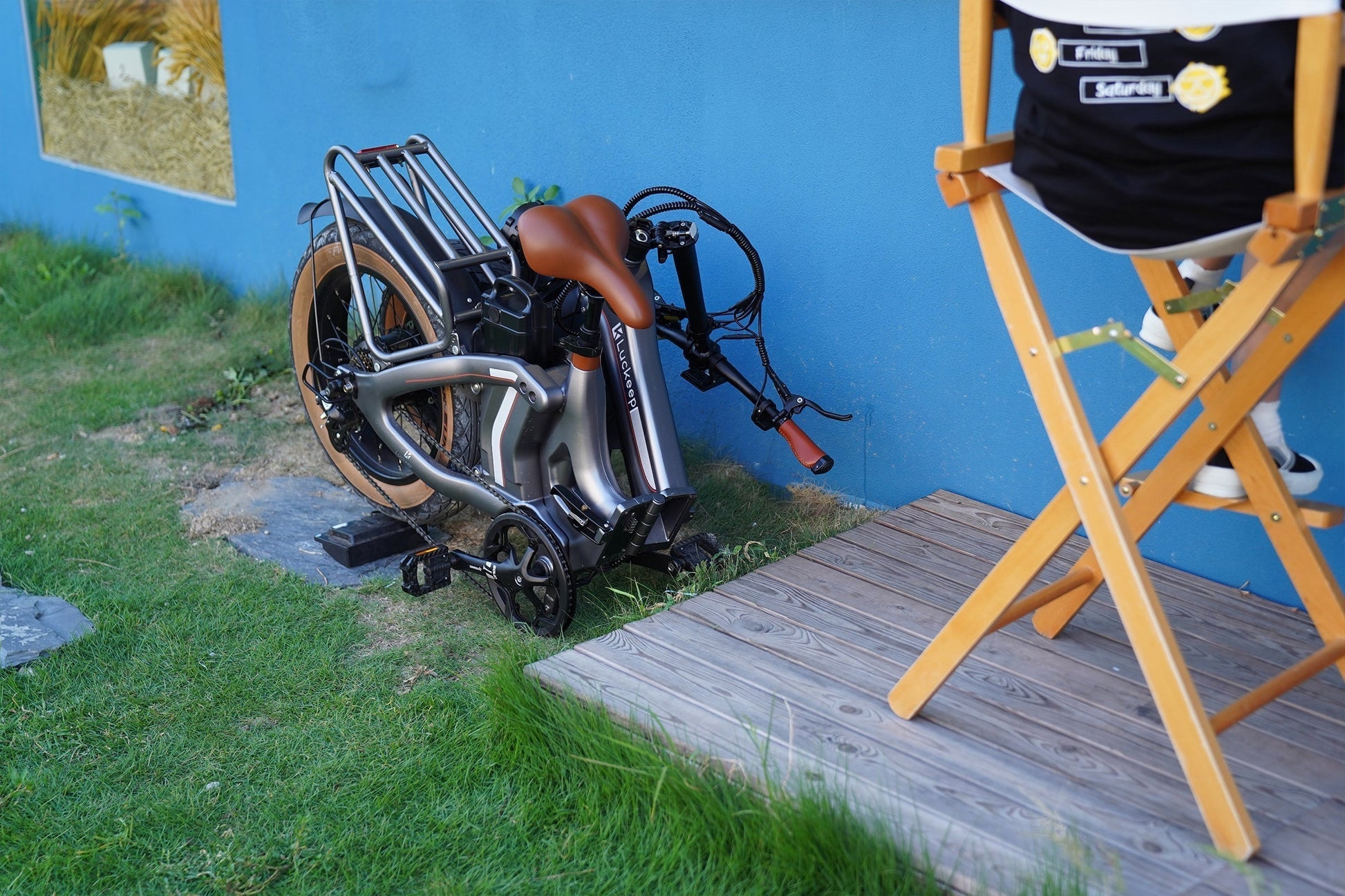

FOLDING: Yes

RIDER HEIGHT: 5'4"-6'4"FT

PEDAL ASSIST: 0~5 level pedal assist

FRAMESET

FRAME: One-piece magnesium integrated

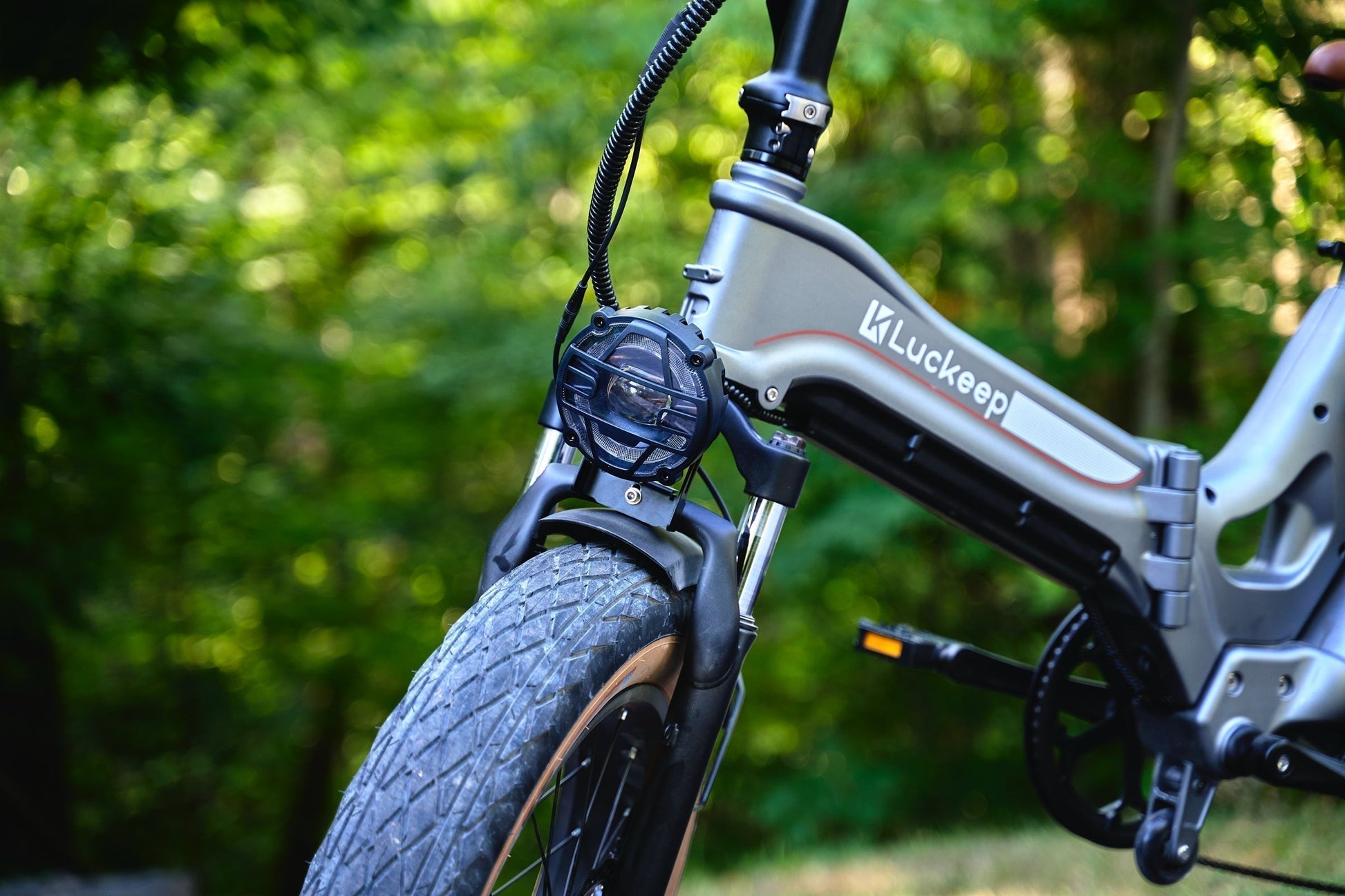

FORK: Hydraulic Shock absorbing Adjustable soft and hard

FRAME STYLE: Step-Through

WHEELSET

RIM: Aluminum 20 inch 36h Front & Rear

SPOKES: Black Stainless 13G Front / 13G Rear

TUBES: Butyl Rubber, Schrader Valve

TIRES: 20"x 4" Chaoyang Hybrid Tires

EBIKE SYSTEM

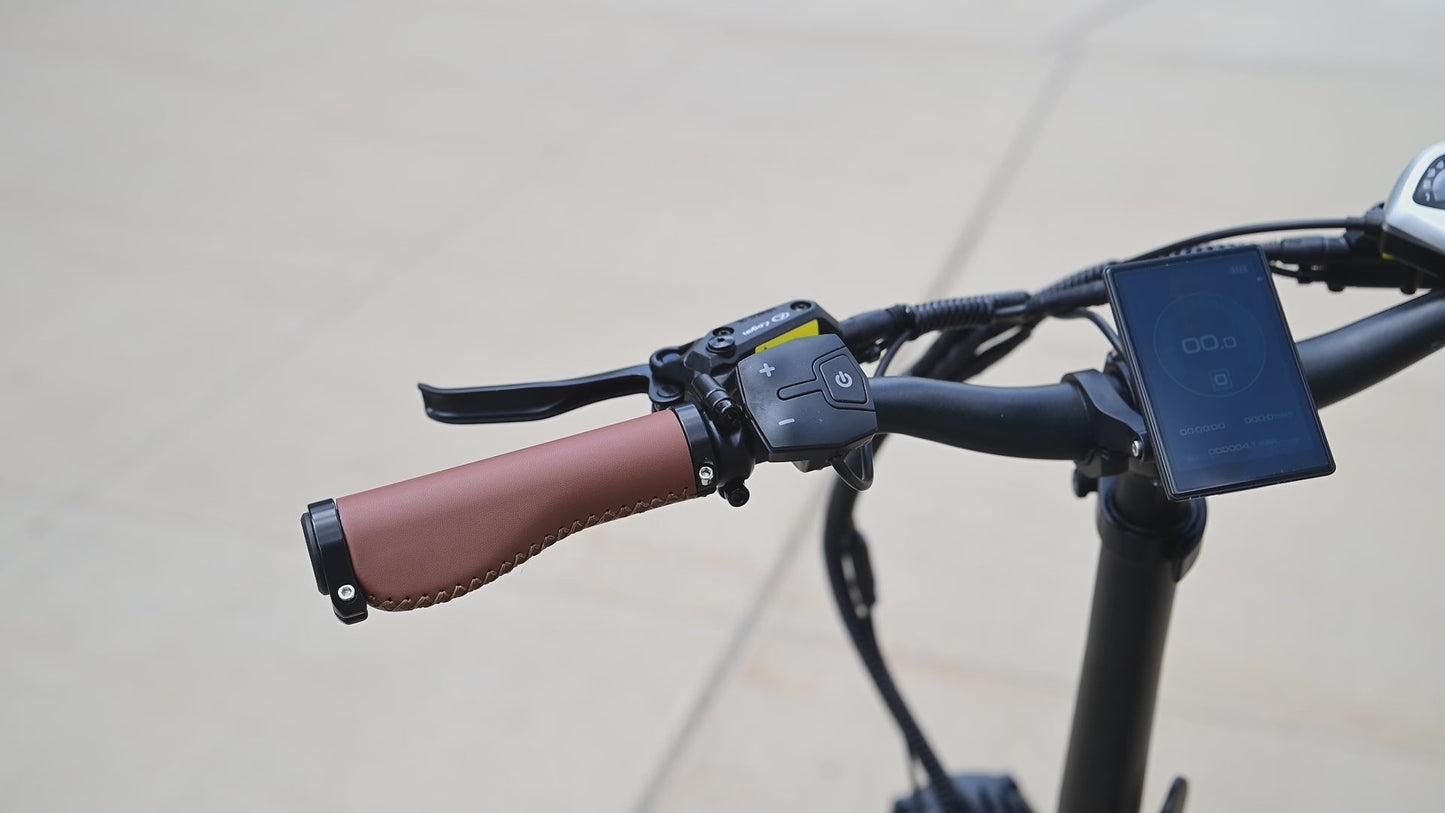

THROTTLE: Twist Throttle with Cruise Control

MOTOR: 1200w (peak), 750w (sustained), 48V Brushless Rear Hub Motor, 80Nm

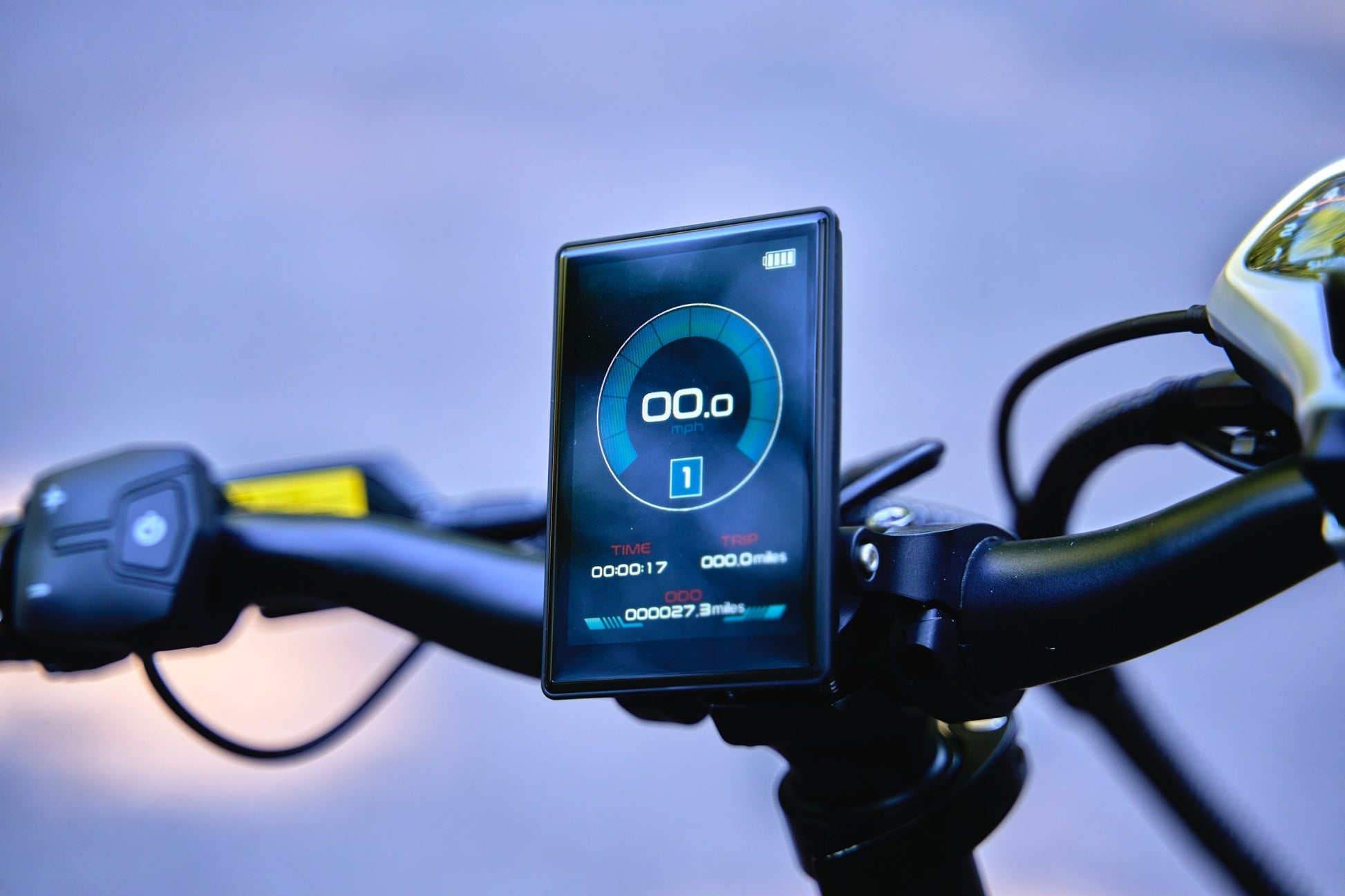

DISPLAY: Embedded Flush IPS display with APP Control

BATTERY: SAMSUNG Dual battery 48V 20AH (960Wh), UL 2271, UL 2849 Compliant

SENSORS: Cadence Sensor

CHARGER: UL 1310 Certification 48V/3A Charger, 5-6 Hour Charging Time

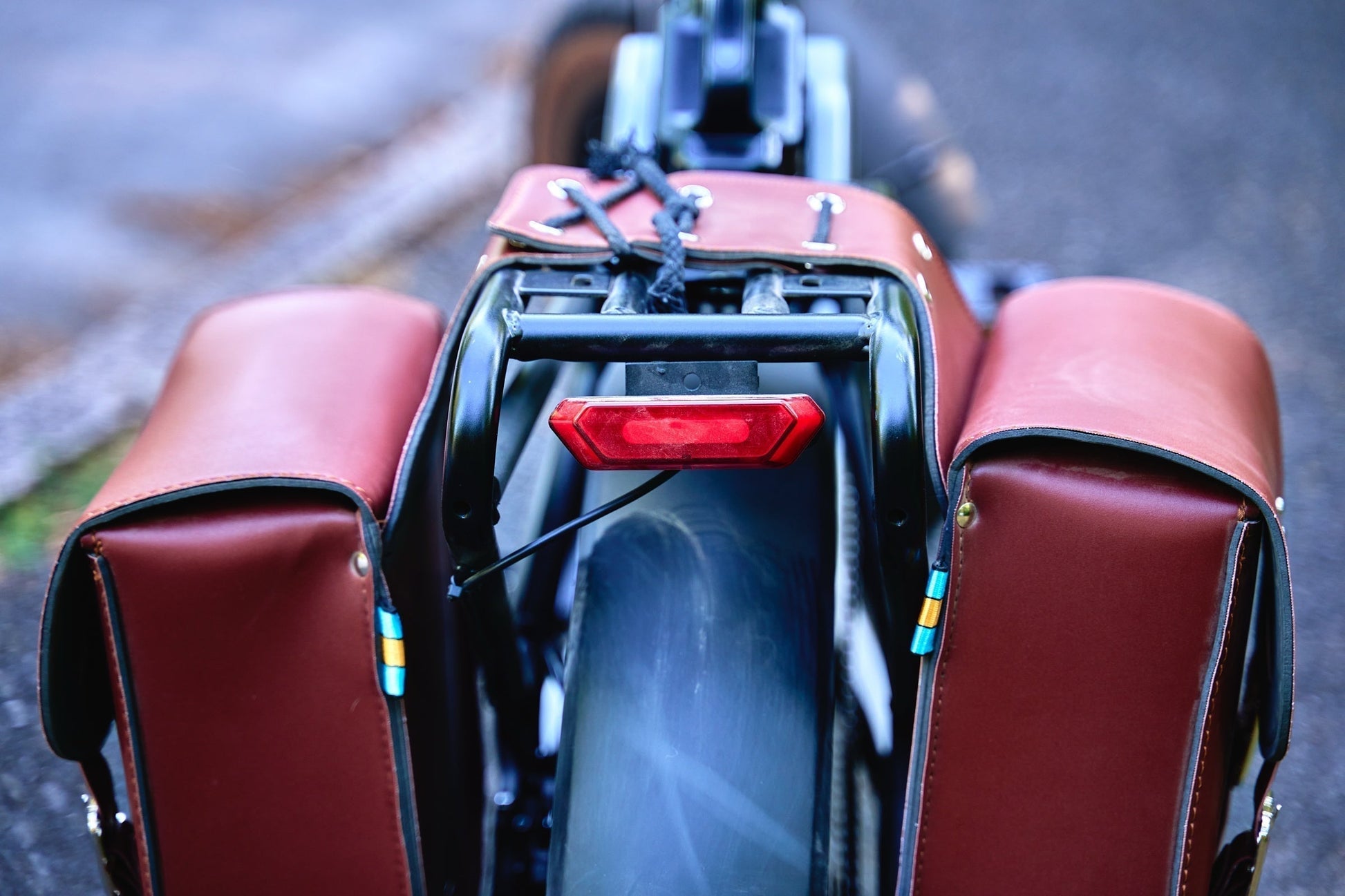

LIGHTS: Included

BRAKES: F & R Hydraulic Disc Brakes, 180mm Rotors

DRIVETRAIN

BOTTOM BRACKET: Square Taper, Sealed, Cadence Sensor

PEDALS: Feimin 9/16' Foldable Platform

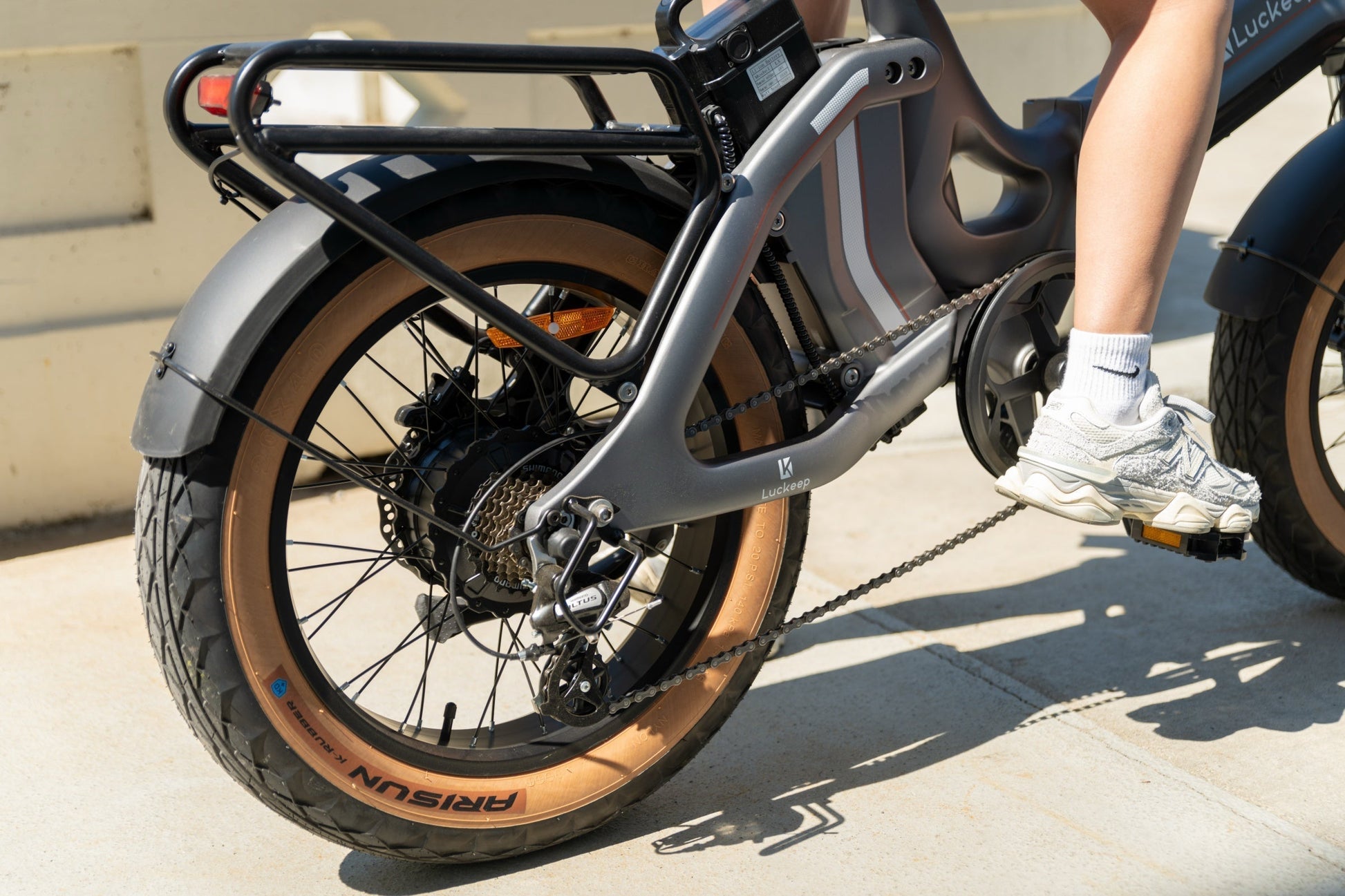

REAR DERAILLEUR: 7 Speed Shimano Rear Derailleur

CASSETTE: 52 T front & rear shimano seven Speed 14-28 T

SHIFT LEVER: 7 Speed Trigger

CHAIN: 134 Link, 7 Speed

GEOMETRY

Recommended Height: 165-210CM/5'4"-6'7"

Ebike Weight: 81.5LBS/37KG

Load Capacity: 440LBS/200KG

Total Length: 1790mm

Total Heigh: 1200-1320mm

Backseat Height: 665mm

Total Length: 890-1050mm

Chain Stay Length: 538mm

Wheel Height: 340mm

Top Tube Length: 610mm

Fork Heigh: 420mm

PEDALS: 9/16"

HANDLEBAR: 640mm width

SEATPOST: Hydraulic Shock mount tube, 31.6mm*300mm

STEM: Folding, Height Adjustable 28.6mm, 9 Degree Rise
